Extrusion blow moulding
Click on the screenshot above to view the "Extrusion Blow Moulding" animation by Laszlo Lipot

An image showing the Flash animation logo SWF Flash logo is a link to a Flash animation.

Flash animations are embedded into the pages of all my D&T Modules but there are pictorial links to the animations on this web site so that devices that cannot play Flash animations will at least show a jpeg screenshot of the animation.

If your PC or personal digital assistant (PDA) can play Flash animations you may click on an image showing the Flash animation logo SWF Flash logo to view the animation in a new window.
(Your browser may require you to click "Allow Blocked Content" to view the animation). See info about viewing Flash animations.


Extrusion Blow Moulding

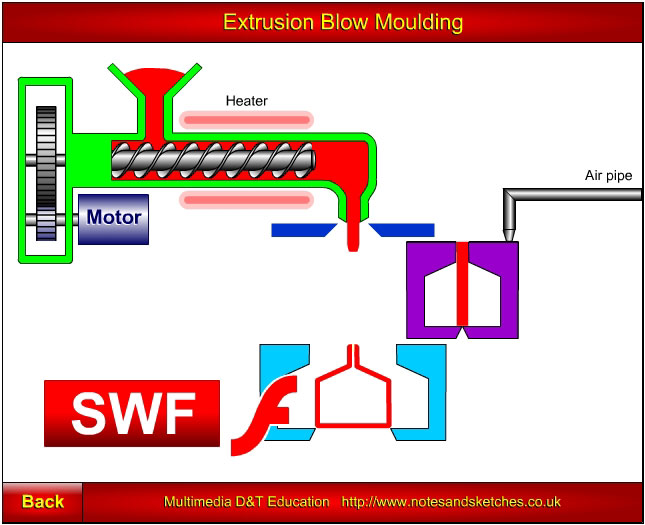

The extrusion blow moulding process consists of the following sequence of operations:

  • plasticised polymer is extruded as a hollow pipe called a parison
  • the parison is cut to length and clamped in the blow mould
  • the blow mould is passed to the air pipe and the parison is given a blast of air
  • air inflates the hollow parison and forces it against the sides of the mould
  • after a short cooling period, the moulding is ejected.

The extruder produces a continuous flow of hollow section parison, so two or more moulds will be used to keep up with the flow of polymer.

Typical plastics used for extrusion blow moulding include:

  • Polyethylene - Terephthalate (PET)
  • Polypropylene (PP)
  • Polyethylene (PE)
  • Polyvinyl Chloride (PVC)


Click here to view the PDF version of this resource. Extrusion blow moulding PDF Extrusion blow moulding PDF
Copyright Laszlo Lipot.
