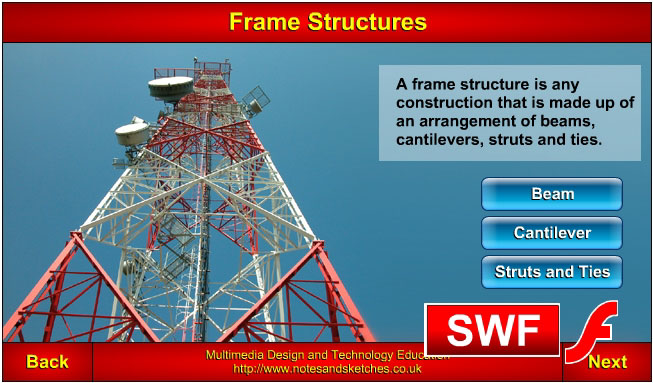

Link to Frame Structures animation
Click on the screenshot above to view the "Frame Structures" animation by Laszlo Lipot


An image showing the Flash animation logo SWF Flash logo is a link to a Flash animation.

Flash animations are embedded into the pages of all my D&T Modules but there are pictorial links to the animations on this web site so that devices that cannot play Flash animations will at least show a jpeg screenshot of the animation.

If your PC or personal digital assistant (PDA) can play Flash animations you may click on an image showing the Flash animation logo SWF Flash logo to view the animation in a new window.
(Your browser may require you to click "Allow Blocked Content" to view the animation). See info about viewing Flash animations.


A frame structure is an arrangement of parts that have been fixed together to form a framework. The framework may consist of beams, cantilevers, struts and ties. The frame structure may be designed to resist compression forces, tension or tensile forces, torsion forces, bending forces or any combination of these forces.

The beams, cantilevers, struts and ties may be positioned vertically, horizontally or diagonally; they may be straight or curved and may be made in any resistant material.

Frame structures may be used to:

  • carry loads, e.g. a shopping trolley
  • hold other parts together, e.g. a bicycle frame
  • form barriers, e.g. a wrought iron fence
  • reinforce shell structures, e.g. frames and stringers welded to a steel yacht hull
  • support fabric and other covering material, e.g. a framed tent

The strength of a structure depends on many things, including:

  • the design of the structure
  • the type of materials used in the structure
  • the size of the materials used in the structure
  • the way that parts of the structure are fixed together.
