Introduction

This exercise is about product analysis and design development.

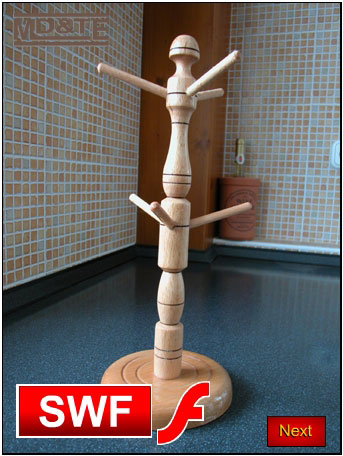

During this exercise you will analyse the mug tree shown opposite and describe how it could be made, how it could be improved and how the design could be modified for a completely different use.

1. Product Analysis

Product analysis involves looking very closely at a product to investigate what it is used for, how it is made, what it is made from, how the parts are fixed together etc.

You may have to carry out research in order to be able to answer the questions below.



Mug tree
Click on the illustration to view the
animation in a new window
Name a suitable wood for the mug tree and explain the reason for your choice.
Name a suitable adhesive to join the parts and explain the reason for your choice.
Name a suitable finish for the parts and explain the reason for your choice.
Name a machine that could be used to make the parts of the mug tree.
Name the process that you would use to make the centre stand of the mug tree.
Name the process that you would use to make the base of the mug tree.
What is the name used to describe long lengths of cylindrical wooden material.
Explain how the cylindrical wooden material could be fixed firmly to the stand.
Explain how the stand could be fixed firmly to the base.
Name three tools that you would use with your chosen machine to shape the stand and the base of the mug tree.

Of the research methods listed below, name the methods that you used to find the information that you needed to complete the questions above.

Explain the reasons for your choice.

  • Product analysis
  • Value analysis
  • Library search
  • Internet search
  • Experiments
  • Observation
  • Site visit
  • Case study
  • Interview.
  • Surveys
  • Role play



Click on the link to print the page or use the print button on your browser.


2. Design Development

When you have finished the product analysis, you should work on plain paper and use notes and sketches to show:

An image showing the Flash animation logo SWF Flash logo is a link to a Flash animation.

Flash animations are embedded into the pages of all my D&T Modules but there are pictorial links to the animations on this web site so that devices that cannot play Flash animations will at least show a jpeg screenshot of the animation.

If your PC or personal digital assistant (PDA) can play Flash animations you may click on an image showing the Flash animation logo SWF Flash logo to view the animation in a new window.
(Your browser may require you to click "Allow Blocked Content" to view the animation). See info about viewing Flash animations.
